Dome Port vs. Flat Port

Have you ever taken underwater photos with a dome port and noticed something strange? The center of your image is crystal clear, but the edges look soft and blurry. What causes this? More importantly, how can you fix it? Don’t worry, we’ll keep things simple and informative. This guide will help you take your underwater photography to the next level.

Dome Port vs. Flat Port

When capturing underwater photos, the choice of port on your camera housing plays a significant role. Dome ports are popular for wide-angle and fisheye lenses because they preserve a lens’s field of view, letting you shoot coral reefs, curious turtles or stunning wide angle shots. But, that curved design comes with a challenge: blurry corners.

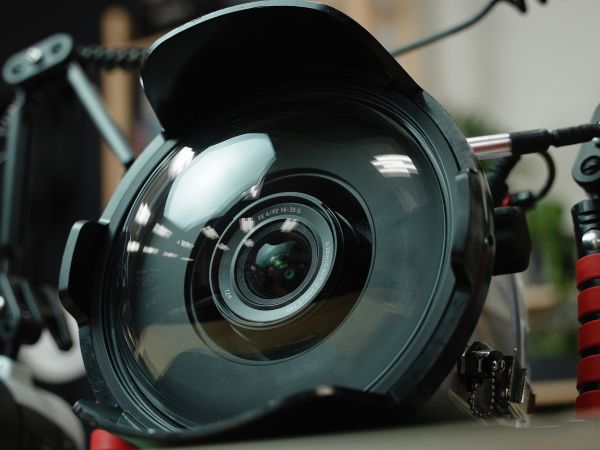

What is a Dome Port?

A dome port is the curved glass or acrylic element attached to your underwater housing. While its main job is to protect your camera, it also serves another purpose: maintaining your lens’s field of view underwater. This is especially useful for wide-angle and fisheye lenses, allowing you to capture wide underwater scenes. However, the curved shape also introduces optical challenges that often result in blurry corners.

Why Are the Corners Blurry?

Let’s break it down:

1. Light Behaves Differently Underwater
   When light passes from water into the air inside the dome port, it bends. A process called refraction. Light entering the center of the dome travels straight into the lens, but light at the edges enters at an angle. This uneven bending can distort the edges and make them appear blurry.
2. The Curved Shape of the Dome
   A dome port’s rounded surface makes it hard for your lens to focus evenly across the entire image. Light rays entering through the center are focused differently than those from the edges, leading to soft or distorted corners.
3. Virtual Images
   Underwater, a dome port creates a "virtual image" that appears closer to your lens than the actual subject. Your lens focuses on this virtual image, which works well for the center of your photo. However, the edges often fall outside the sharp focus range.
4. Lens Compatibility
   Wide-angle and fisheye lenses often have edge distortion because they interact more strongly with the dome’s curved shape.

How to Fix Blurry Corners

The good news? You can minimize blurry corners with a few simple tips:

• Use a Larger Dome Port
  Bigger dome ports reduce the angle at which light bends, minimizing edge distortion and improving sharpness in the corners.
• Choose a Smaller Aperture
  Set your camera to a higher f-stop (e.g., f/8 or f/11). A smaller aperture increases depth of field, making more of your image (corners included) appear sharper.
• Post-Processing Adjustments
  Editing tools like Lightroom or Photoshop can help. You can crop out soft edges or use sharpening tools to refine blurry areas.

Why Bother?

You might wonder if blurry corners are really worth fixing. The answer depends on your photography goals. For macro shots, this issue is minimal. But for wide-angle underwater scenes like coral reefs or baitball, sharp edges are key to creating a polished and professional image.

Flat Port vs Dome Port in Underwater Photography

When using a flat port instead of a dome port in underwater photography, something important happens to your field of view. The difference lies in how light passes through the port's glass and how that affects the lens. Below, I'll explain what happens, including the commonly mentioned 30% light loss with a flat port.

What About Flat Ports?

Flat ports, as the name suggests, have a flat glass surface. These are often used with macro or standard zoom lenses. While they have their strengths, especially for close-up shots, they come with their own set of challenges for wide-angle photography.

Key Effects of Flat Ports:

1. Loss of Field of View
   Due to refraction, a flat port reduces your lens’s field of view by about 30%. For example, a lens with a 100-degree angle on land will capture only about 70 degrees underwater. This limits how much of the scene you can fit into the frame.
2. Image Distortion
   Objects appear closer and slightly larger due to the refraction at the flat surface. This can be a plus for macro photography but feels unnatural for wide-angle shots.
3. Soft Corners
   Similar to dome ports, flat ports can also produce blurry edges, though the effect is often more pronounced.
4. Chromatic Aberration
   Flat ports can cause slight color fringing, especially at the edges of your photos, because different wavelengths of light bend at slightly different angles.

Why Use a Flat Port?

Despite their limitations, flat ports shine in specific scenarios:

• Macro Photography
  The magnification effect helps you capture small details of critters like nudibranchs or shrimp.
• Wet Lenses
  Flat ports are compatible with wet lenses that can be attached underwater, offering extra flexibility for macro or wide-angle shots.

Conclusion

Blurry corners in underwater photography often come down to how light interacts with your dome port and lens. While it’s frustrating, it’s also partially fixable. Upgrading to a larger dome port, choosing a smaller aperture, or refining your images in post-production can make a world of difference.

For flat ports, the trade-off is clear: they’re perfect for macro shots but limit wide-angle performance. Understanding these tools will help you make better choices and capture sharper, more vibrant underwater photos.

Dive, experiment, and, above all, have fun! Underwater photography is just as much about the journey as the results.
